Stable Performance Electric Concrete Pump Mobility Strong Save Manpower

Name: Stable Performance Electric Concrete Pump Mobility Strong Save Manpower
Brand: Jianxin
Price: 12 USD

Quality Stable Performance Electric Concrete Pump Mobility Strong Save Manpower for sale

Brand Name : Jianxin

Model Number : HBTS15-6

Certification : ISO CE

Place of Origin : China

MOQ : one set

Price : $12,000.00 - $17,000.00 / Set

Payment Terms : L/C, D/A, D/P, T/T, Western Union, MoneyGram

Supply Ability : 50 sets per month

Delivery Time : 8-10 days

Packaging Details : China Standdard package

Theoretical pump pressure : 8MPa

Distribution valve form : S tube pendulum valve

Pipe inner diameter : ￠125A/100Amm

Hopper volume / height : 0.3/900m3/mm

After Warranty Service : Video technical support, Online support, Spare parts

Condition : New

Contact Now

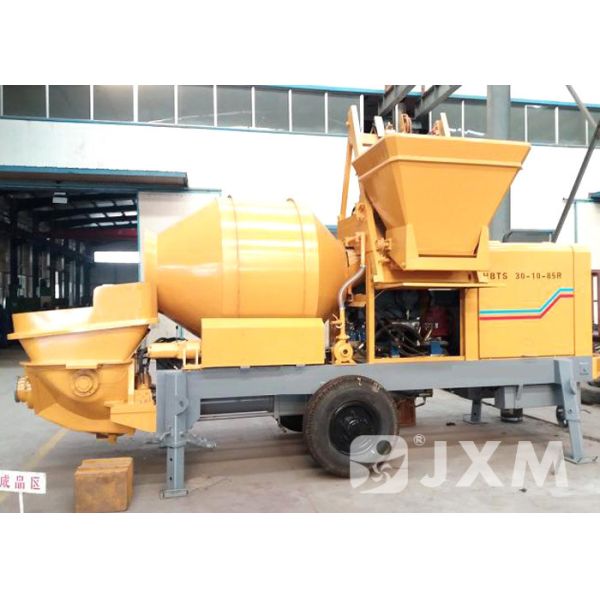

Electric Concrete Trailer Pump Description

1. Biggest characteristic is the Electric Concrete Trailer Pump, mobile flexibility, mobility strong, suitable site turns alternating operations and in the process of mixing and pumping, originally required the two programs you only need one operator to complete, save manpower.
2. Car-forced mixing pump is a very high degree of automation of machinery and equipment, set automatic feeding, mixing, high pressure pump with one, can save a lot of labor to build houses, in line with the current development situation of labor.

Advantages of Electric Concrete Trailer Pump

1. Truck-mounted concrete stationary pump easy to use, and construction of efficient and convenient.
2. The transport distance, can meet the housing construction projects, such as construction.
3. Adopts famous brand engine, powerful, long service life, the hydraulic system adopts imported original, excellent performance, to provide products with high reliability.
4. High wear-resistant alloy material glass plate, cutting ring and piston in the concrete, much longer consumable replacement cycle.

Features of Electric Concrete Trailer Pump

Technical parameter of Electric Concrete Trailer Pump

Theoretical concrete output	m3/h	20
Theoretical pump pressure	MPa	8
Distribution valve form		S tube pendulum valve
Pipe inner diameter	mm	￠125A/100A
Theoretical transport distance level / vertical	m	300/90
Concrete cylinder diameter * stroke	mm	￠140*750
Hopper volume / height	m3/mm	0.3/900
Aggregate size	mm	30
Scope of concrete collapse	mm	120-230
Main motor power	kw	45
Rated speed	r/min	1480
Voltage / frequency	V/Hz	380/660
Tank volume	L	130
Cleaning method		High pressure washing
Shape size (long x wide x high)	mm	295012001250
Quality (oil)	kg	2200
